前言

主要是通过gin的源码，学习一些golang编程的常见技巧。同时积累标准库的用法。

options模式

一种设置结构体参数的方法，用于设置默认值，但用户可以传入option来修改默认值，具备可扩展性。

  1. gin初始化时会传入opts
    1
    2
    3
    4
    5
    6
    7
    func New(opts ...OptionFunc) *Engine {
    	engine := &Engine{
            // 默认参数
            ...
    	}
    	return engine.With(opts...)
    }
  2. options应用
    1
    2
    3
    4
    5
    6
    7
    func (engine *Engine) With(opts ...OptionFunc) *Engine {
    	for _, opt := range opts {
    		opt(engine)
    	}

    	return engine
    }
  3. 如可以写一个OptionFunc并加载
    1
    2
    3
    4
    5
    6
    7
    func WithForwardedByClientIP() gin.OptionFunc {
    	return func(engine *gin.Engine) {
    		engine.ForwardedByClientIP = true
    	}
    }

    r := gin.Default(WithForwardedByClientIP())

中间件扩展原理

  1. 插入中间件，实际上将中间件对应的函数闭包HanlerFunc存到路由切片里

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    func (engine *Engine) Use(middleware ...HandlerFunc) IRoutes {
    	engine.RouterGroup.Use(middleware...)
        ...
    	return engine
    }
    // Use adds middleware to the group, see example code in GitHub.
    func (group *RouterGroup) Use(middleware ...HandlerFunc) IRoutes {
    	group.Handlers = append(group.Handlers, middleware...)
    	return group.returnObj()
    }

  2. 以默认两个中间件为例，可以看到中间件HandlerFunc会操作gin.Context变量。调用c.Next()前为中间件前处理，调用后为请求完毕后处理。如日志中间件会记录调用耗时并打印。

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    engine.Use(Logger(), Recovery())
    func Logger() HandlerFunc {
    	return LoggerWithConfig(LoggerConfig{})
    }
    // LoggerWithConfig instance a Logger middleware with config.
    func LoggerWithConfig(conf LoggerConfig) HandlerFunc {
        ...
    	return func(c *Context) {
    		// Start timer
    		start := time.Now()
    		path := c.Request.URL.Path
    		raw := c.Request.URL.RawQuery

    		// Process request
    		c.Next()
            ...
    		param := LogFormatterParams{
    			Request: c.Request,
    			isTerm:  isTerm,
    			Keys:    c.Keys,
    		}

    		// Stop timer
    		param.TimeStamp = time.Now()
    		param.Latency = param.TimeStamp.Sub(start)

    		param.ClientIP = c.ClientIP()
    		param.Method = c.Request.Method
    		param.StatusCode = c.Writer.Status()
    		param.ErrorMessage = c.Errors.ByType(ErrorTypePrivate).String()

    		param.BodySize = c.Writer.Size()

    		if raw != "" {
    			path = path + "?" + raw
    		}

    		param.Path = path

    		fmt.Fprint(out, formatter(param))
    	}
    }

  3. Next()函数会执行后面的中间件

    1
    2
    3
    4
    5
    6
    7
    func (c *Context) Next() {
    	c.index++
    	for c.index < int8(len(c.handlers)) {
    		c.handlers[c.index](c)
    		c.index++
    	}
    }

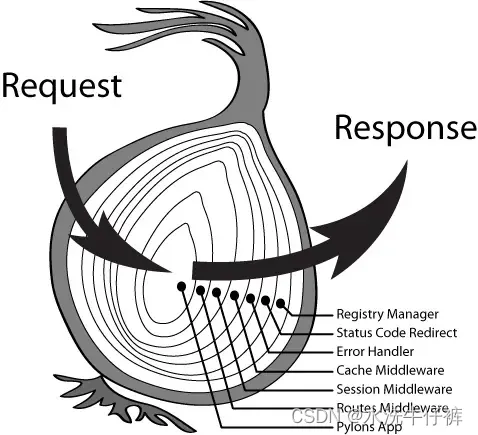

  4. 假如绑定了一个ping，当一个ping到达gin时，处理过程类似洋葱模型。跟深度优先遍历算法代码基本一样

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    	r.GET("/ping", func(c *gin.Context) {
    		c.JSON(http.StatusOK, gin.H{
    			"message": "pong",
    		})
    	})
    	r.Run()

    func (group *RouterGroup) GET(relativePath string, handlers ...HandlerFunc) IRoutes {
    	return group.handle(http.MethodGet, relativePath, handlers)
    }
    func (group *RouterGroup) handle(httpMethod, relativePath string, handlers HandlersChain) IRoutes {
    	absolutePath := group.calculateAbsolutePath(relativePath)
    	handlers = group.combineHandlers(handlers)
    	group.engine.addRoute(httpMethod, absolutePath, handlers)
    	return group.returnObj()
    }
    // 这里将所有handler汇总，返回最终的HandlersChain
    func (group *RouterGroup) combineHandlers(handlers HandlersChain) HandlersChain {
    	finalSize := len(group.Handlers) + len(handlers)
    	assert1(finalSize < int(abortIndex), "too many handlers")
    	mergedHandlers := make(HandlersChain, finalSize)
    	copy(mergedHandlers, group.Handlers)
    	copy(mergedHandlers[len(group.Handlers):], handlers)
    	return mergedHandlers
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
func (engine *Engine) addRoute(method, path string, handlers HandlersChain) {
    ...

    // 将handlers挂在前缀树对应path的叶子node上
	root := engine.trees.get(method)
	if root == nil {
		root = new(node)
		root.fullPath = "/"
		engine.trees = append(engine.trees, methodTree{method: method, root: root})
	}
	root.addRoute(path, handlers)

	if paramsCount := countParams(path); paramsCount > engine.maxParams {
		engine.maxParams = paramsCount
	}

	if sectionsCount := countSections(path); sectionsCount > engine.maxSections {
		engine.maxSections = sectionsCount
	}
}
  1. 请求到达，取出method树对应的节点挂着的hanlders，赋值给Context，然后调用Next()，开始像洋葱模式一样执行。
1
2
3
4
5
6
7
8
9
10
11
12
// ServeHTTP conforms to the http.Handler interface.
func (engine *Engine) ServeHTTP(w http.ResponseWriter, req *http.Request) {
    // 取一个gin.Context
	c := engine.pool.Get().(*Context)
	c.writermem.reset(w)
	c.Request = req
	c.reset()
    // 实际处理
	engine.handleHTTPRequest(c)

	engine.pool.Put(c)
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
func (engine *Engine) handleHTTPRequest(c *Context) {
	httpMethod := c.Request.Method
	rPath := c.Request.URL.Path
	unescape := false
    ...
	// Find root of the tree for the given HTTP method
	t := engine.trees
	for i, tl := 0, len(t); i < tl; i++ {
        // 找到对应的方法树
		if t[i].method != httpMethod {
			continue
		}
		root := t[i].root
		// Find route in tree
		value := root.getValue(rPath, c.params, c.skippedNodes, unescape)
		if value.params != nil {
			c.Params = *value.params
		}

		if value.handlers != nil {
            // 这里最重要，取出了对应节点的hanlders赋给Context
			c.handlers = value.handlers
			c.fullPath = value.fullPath
            // 调用Next执行请求
			c.Next()
			c.writermem.WriteHeaderNow()
			return
		}
		if httpMethod != http.MethodConnect && rPath != "/" {
			if value.tsr && engine.RedirectTrailingSlash {
				redirectTrailingSlash(c)
				return
			}
			if engine.RedirectFixedPath && redirectFixedPath(c, root, engine.RedirectFixedPath) {
				return
			}
		}
		break
	}

	if engine.HandleMethodNotAllowed {
		for _, tree := range engine.trees {
			if tree.method == httpMethod {
				continue
			}
			if value := tree.root.getValue(rPath, nil, c.skippedNodes, unescape); value.handlers != nil {
				c.handlers = engine.allNoMethod
				serveError(c, http.StatusMethodNotAllowed, default405Body)
				return
			}
		}
	}
	c.handlers = engine.allNoRoute
	serveError(c, http.StatusNotFound, default404Body)
}

标准库函数积累

1
2
3
4
5
6
7
8
// 测试format是否以 \n 结尾。
strings.HasSuffix(format, "\n")
// 往DefaultWriter里面写格式化string
fmt.Fprintf(DefaultWriter, "[GIN-debug] "+format, values...)
// 获取操作系统环境变量
os.Getenv("TERM") == "dumb"
// 将headers []string，字符串以\r\n拼接成一个string，如 sss\r\nbbb
strings.Join(headers, "\r\n")

对象池sync.Pool

sync.Pool 是 Go 语言标准库中的一个并发安全的内存池，主要用于临时对象的存储和复用，从而减少频繁的内存分配和垃圾回收，提高性能。

sync.Pool 主要用于存储短期使用的对象，特别是在高并发场景下，能够有效地减少内存分配的开销。它的设计适合于那些生命周期短暂的对象，比如在请求处理中使用的临时数据结构。

1
2
3
4
5
6
7
8
9
   // 分配Context的函数
engine.pool.New = func() any {
	return engine.allocateContext(engine.maxParams)
}
   // 取
c := engine.pool.Get().(*Context)
   ...
   // 释放
engine.pool.Put(c)
